X-Ray Film and Paper Digitizers S6000 and S6000 Plus (NEW!)

• 600 dots per inch resolution
• Film and paper with S6000, film with S6000 Plus
• USB 2.0
• 8-bit/16-bit processing (65536 shades of gray)
• Gamma, brightness, contrast, and exposure controls
• Film and paper size of up to 14 x 36 inch
• Optical Density of better than 4.0
• Light and compact, only 19.8 lbs.
• Wall mountable
• Feed tray and catch basket included
• Easy 5-minute install
• Hardware and software are fully Customizable
• Windows Xp, Vista , Windows 7 (32 and 64 bits)
• Optional Multiple Film Feeder

Download or view S6000 hardware datasheet

Download or view S6000 Plus hardware datasheet

Multiple Film Feeder

• Digitize multiple X-Ray films with one click
• 10 to 15 films
• 50-60 films per hour for S6000 and 250-300 per hour for S6000 Plus

Software Development Kit (SDK)

• For easy integration of IDD digitizers into medical viewer, QC or PACS software
• No ActiveX or OCX drivers to install
• Easy to use and support
• Customizable with your company name and logo

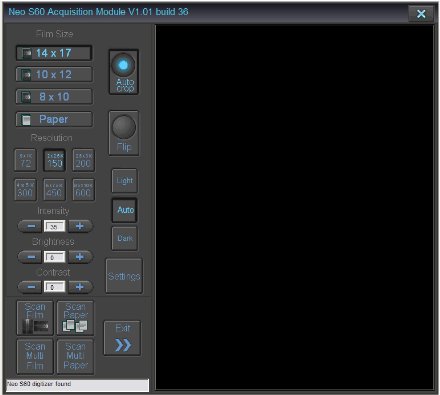

Image Acquisition Module

• A stand-alone acquisition module capable of digitizing film or paper
• Automatic Multiple Film Feeder control already built in
• Images are scanned and saved to files, one image per sheet
• Smart multiple paper scanning
• Automatic intensity, gamma, brightness and contrast control
• Automatic high optical density
• Autocrop film and paper
• 8 and 16 bits processing

Twain Module

• Twain acquisition module
• 8 and 16 bits image processing
• Single or multiple page support
• Autocrop
• Film and paper support with S6000, film only with S6000 Plus
• Automatic image adjustments
